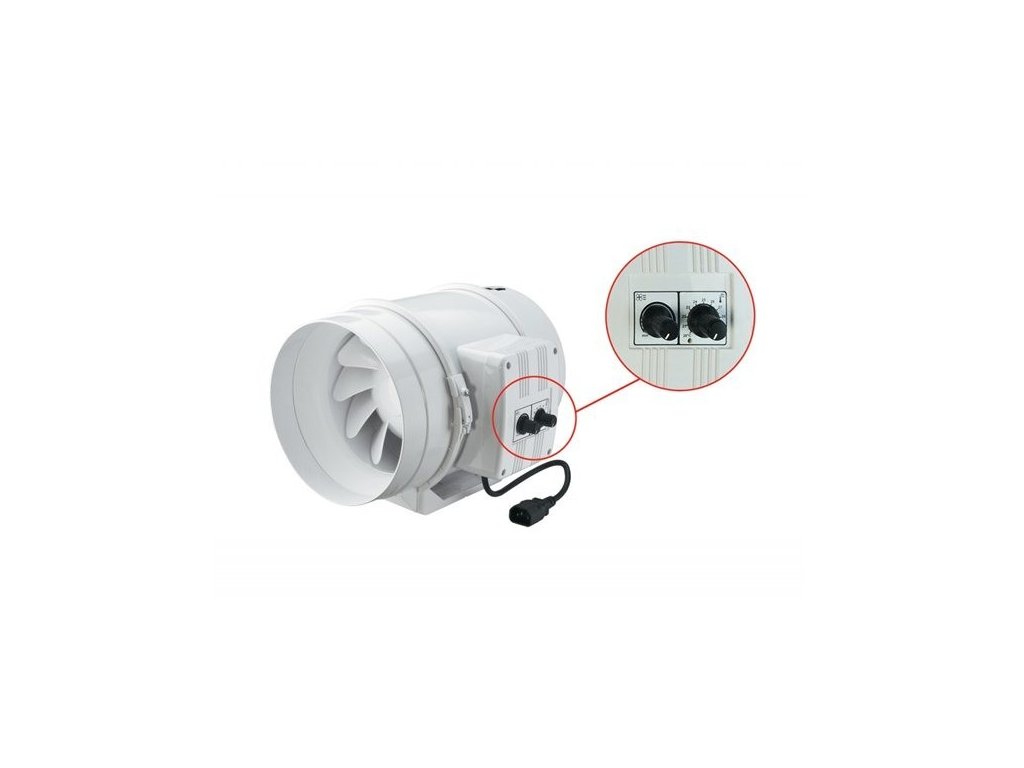

TTu 100mm/187m3 with regulation

Duct fan Vents TT 100 U with a diameter of 100 mm with thermostat and ball bearings.

The fan cover is made of high-quality and durable plastic with ABS admixture. The impeller motor and terminal blocks are fastened to the fan body using special clamps with locks, which ensure possible easy disassembly. Thanks to its design, this fan is easy to maintain. The single-phase ball-bearing motor has two speeds that can be switched using an external switch. The motor is equipped with a thermal fuse with automatic restart. Degree of protection IPX4. Functions: Control knob (potentiometer) for setting the fan speed, control knob (potentiometer) for setting the thermostat, LED light indicating whether the fan is running at high or slow speed. The Vents TT 100 T fan fully meets the requirements for high pressure and yet low noise. The fan can be used in areas with very high humidity, such as greenhouses, growing tents, cellars, etc. Thanks to its technical parameters, it is designed for extraction in pipelines up to 10 meters. This fan with electronic temperature sensor and controller is used for automatic speed control depending on the air temperature in the ventilation duct or inside the room. Thermostat - if the temperature rises 2 ° C above the set thermostat temperature, the fan automatically switches to a higher speed. When the set temperature is reached, the fan switches back to a lower speed and continues to extract.
