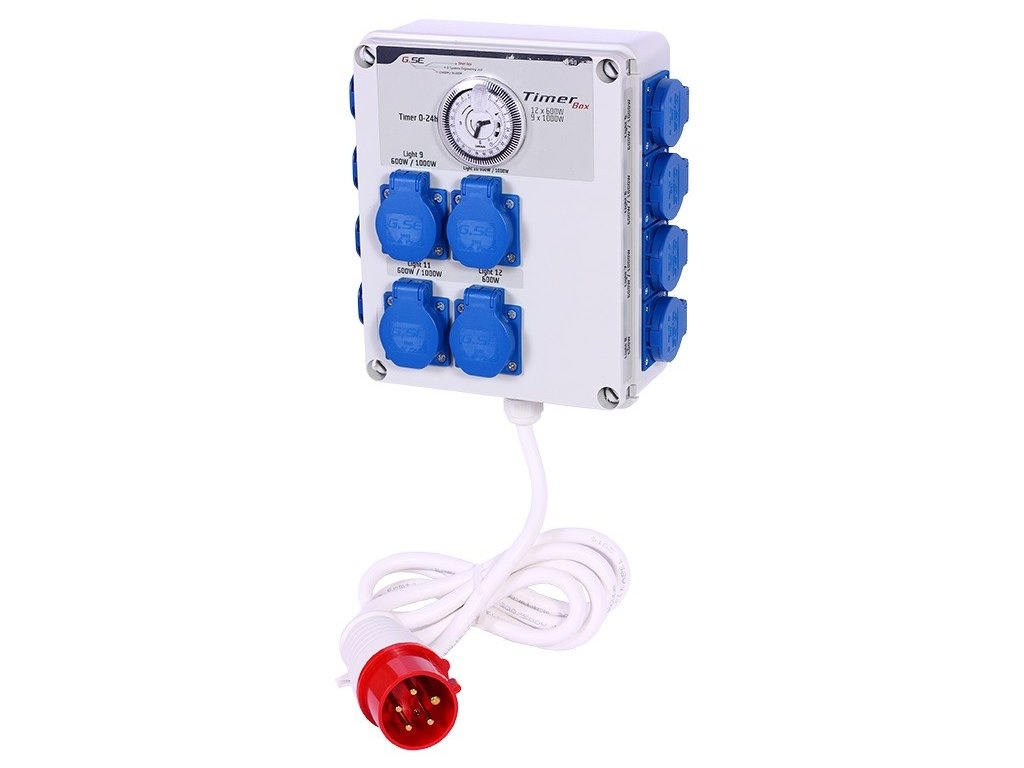

GSE Timer Box II - 12x600W / 400V

The timer controls several inductive loads at the same time, such as high-pressure discharge lamps.

It is a system designed with contactors to control inductive loads up to 12x600W. The timer module is a German "GRÄSSLIN" with a backup power supply for 36 hours.

The timer with socket for electric heating is intelligent. It only heats up when the lamps are switched off (power management).

Dimensions and technical data:

Cover: 200x255x95mm (width x height x length)

Timer: 230x300x110mm (width x height x length)

Power supply: 400V / 50Hz

24-hour timer with 36-hour power reserve Set at 30-minute intervals

Contactor: 4x16A 230V

Degree of protection: IP40
