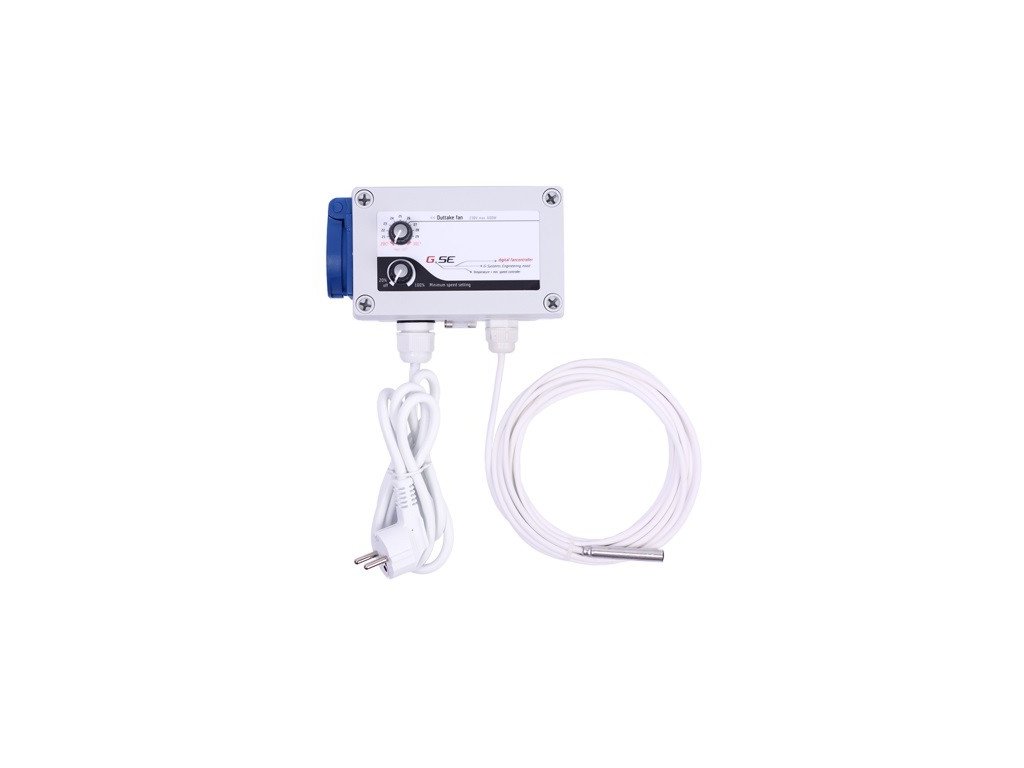

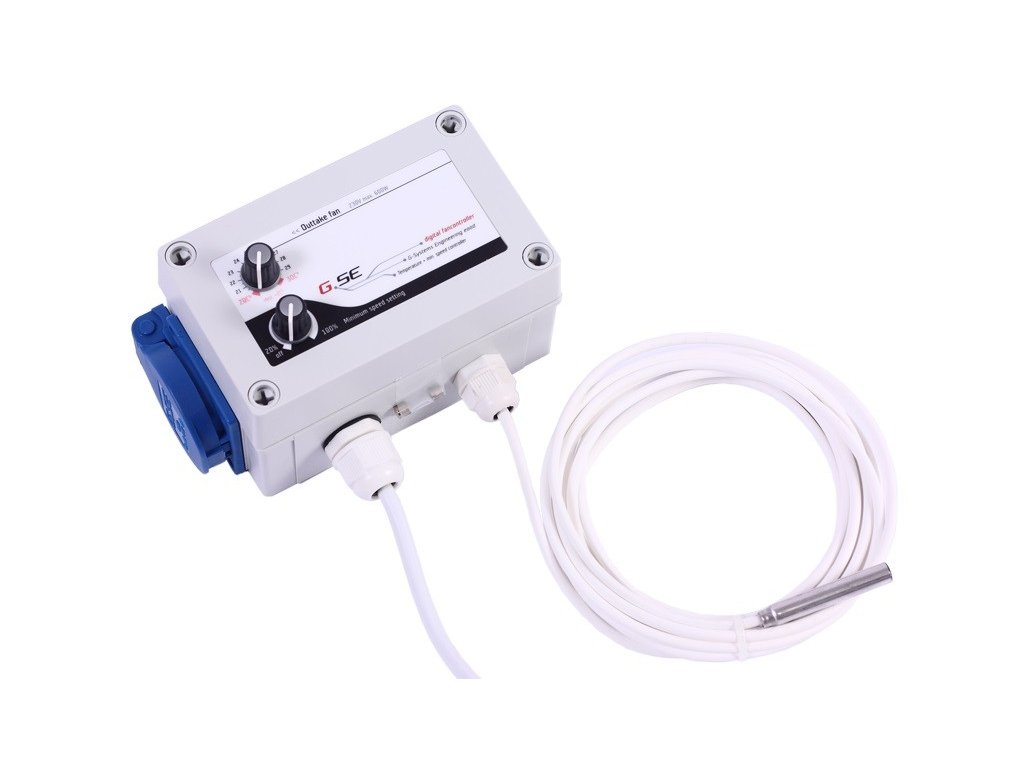

GSE Digital temperature controller and min. fan speed

The ZEWLING 1 GSE speed controller makes it possible to continuously regulate the fan speed and the temperature in the growing room. This device is used to control one exhaust fan.

The controller is used in combination with the exhaust fan to create a stable climate in all growing areas or wherever intensive ventilation is required. The fan speed can be set in the range of 20-100% of power, which will significantly reduce noise. The temperature can be continuously regulated between 20-30 ° C. When the required temperature is exceeded, the exhaust fan is switched on, which works until it drops back to the set value.

The GSE temperature and minimum speed controller is easy to operate, you can set both values with just two knobs. The degree of protection IP54 is also an advantage.

The controller is equipped with a probe with a temperature sensor and is ready for immediate use.

Designed for 1A / 200W / TRIAK 1x16A. Dimensions 160x100x90mm

Technical data:

Case: WxHxD = 130x80x70mm

Regulator: WxHxD = 160x100x90mm

Designed for: 1A / 200W / TRIAC 1x16A

Voltage: 230V / 50HZ

Digital 5V sensor measures temperature from -55 ° C to + 125 ° C (-67 ° F to + 257 ° F)

0.5 ° C deviation from -10 ° C to + 85 ° C

Protection class: IP54

Setting range:

Temperature: 20 ° C to -30 ° C

Minimum speed: off, 20% to -100%
