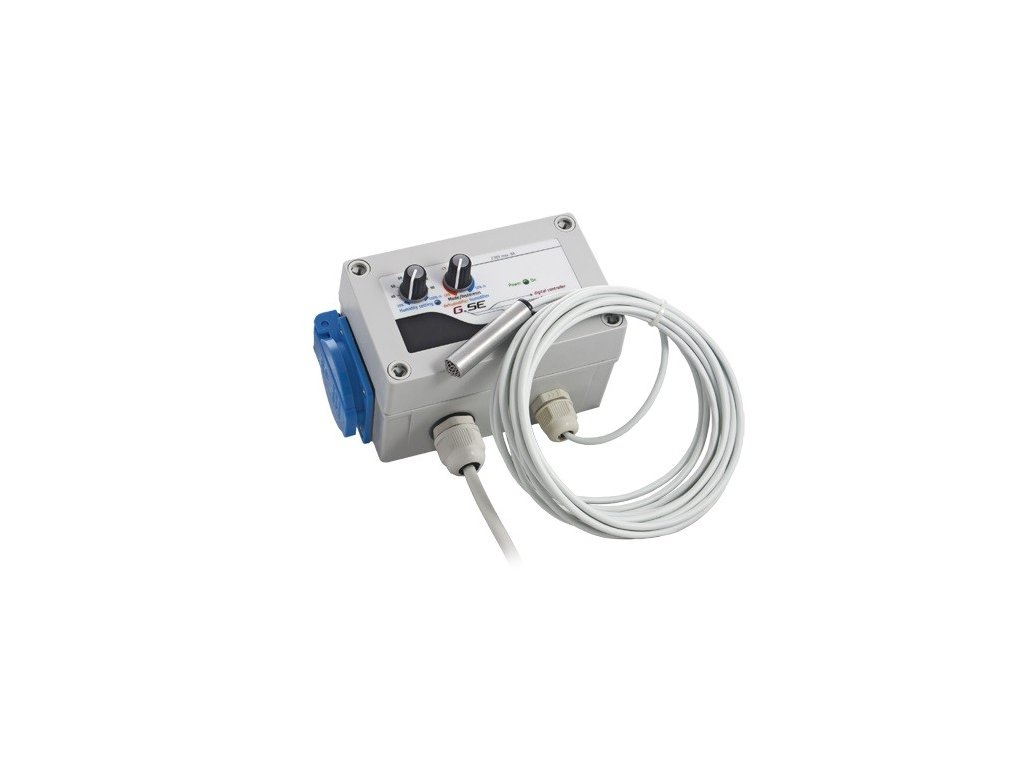

GSE Digital humidification / dehumidification controller 8A

The humidifier connected to the controller keeps the humidity in the room at a constant value. The device is intended for connection between a humidifier or dehumidifier and an exhaust fan.

Use the left knob to set the desired relative humidity in the range of 30-100%. Use the right knob to specify the humidification or dehumidification function and the corresponding hysteresis. The dehumidifier is set in negative values -1 to -10%. Humidifier in positive values 1 to 10%.

The digital humidity controller is supplied in IP54 waterproof protection and is ready for immediate use. Humidity sensor including 4m cable. Dimensions 130x80x70mm.

Sizes and technical data:

Housing: WxHxD = 130x80x70mm

Humidity Controller:

WxHxD = 160x100x90mm

Power requirements: (Mains) Voltage: 230V / 50Hz

Digital Sensor: 5V Measures temperatures from -55 ° C to +125 ° C

(-67 ° F to +257 ° F) 0.5 ° C accuracy from -10 ° c to +85 ° C

Humidity accuracy ± 4.5% RH

Protection class: IP54

Settings range:

Humidity: 30% to 100%

Hysteresis: dehumidifier -10% to -1% and humidifier + 1% to + 10%
