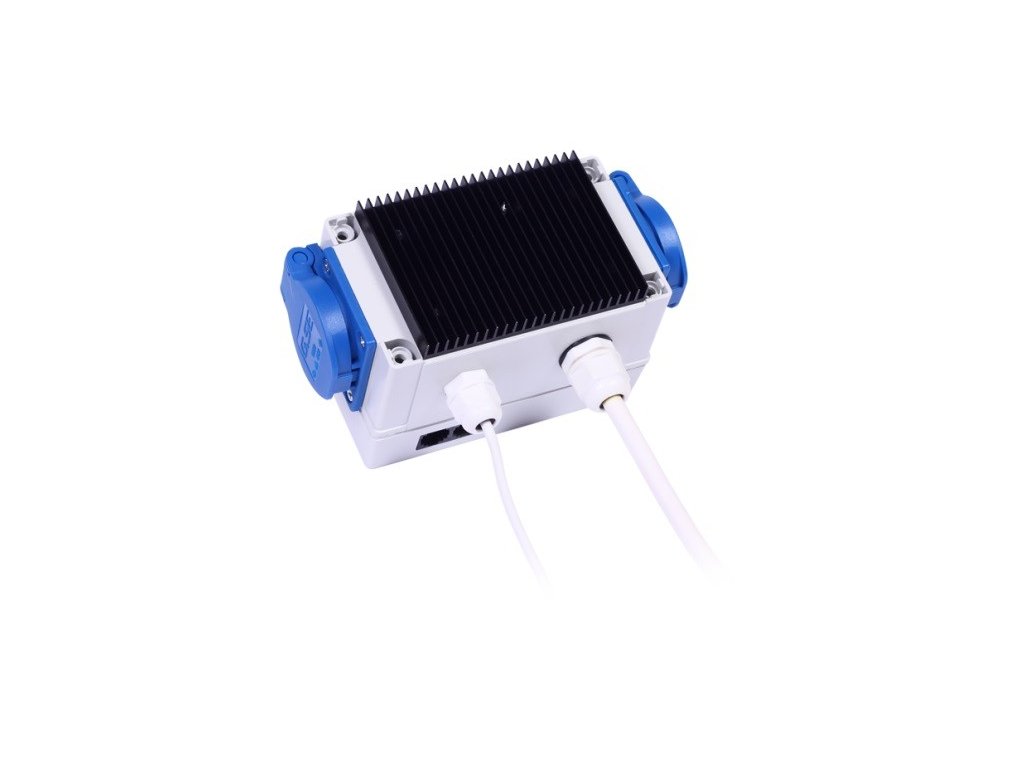

GSE Digital controller for temperature, humidity, vacuum and min. fan speed 2x5A

The multifunctional controller from GSE is used to maintain a stable climate in growing rooms or operations with intensive ventilation. It is used in combination with an exhaust and supply fan or with only one exhaust fan.

The GSE controller for temperature, humidity, vacuum and minimum speed keeps the temperature and humidity in the room at a constant level and prevents the speed from falling below the set minimum. It is easy to operate, because you can set the temperature, humidity and minimum speed settings with just four knobs.

This GSE speed controller is a complete product ready for immediate connection. The high degree of protection IP54 guarantees safe operation even in humid rooms. The cable with the probe is 4 meters long, the sensor measures humidity and temperature.

Dimensions of the device 160x100x90mm. Designed for 2x200W / TRIAK 2x16A.

Sizes and technical data's:

Case: WxHxD = 130x80x70mm

Controller: WxHxD = 160x100x90mm

Designed for: 5A / 2x200W / TRIAC 2x16A

Volts: 230V / 50HZ

Digital sensor 5V Measures temperatures from –55 ° C to + 125 ° C (–67 ° F to + 257 ° F)

0.5 ° C accuracy from -10 ° C to + 85 ° C

humidity accuracy ± 4.5% rh

Protection class IP54

Settings range:

Temperature: 20C ° - 30C °

Humidity: 30% - 100%

Minimum speed: off, 20% - 100%

Negative pressure: 100% - 50%
