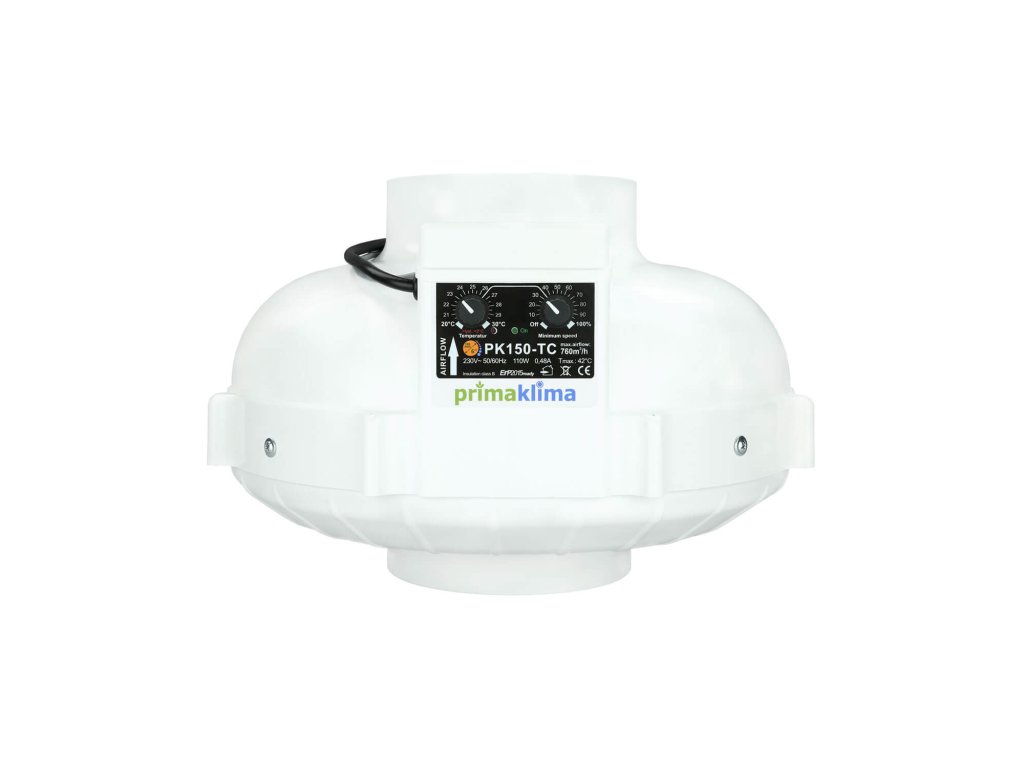

Fan Prima Klima PK150-TC 150mm, 760m3 /h - TEMP CTRL
4,5
2 ratings
The Prima Klima PK150-TC is highly efficient temparature controlled inline duct fan equipped with an MES AC motor with backward curved blades which has been optimally adapted to the housing. The device is extremely silent when is switched to low speed. The entire housing is made of high impact resistant, flame proof polyamide (nylon). Maintance free long lasting ball bearings contribute to especially smooth running of the motor. The control system, the connections and the capacitor are fully integrated into the housing. With the use of the supplied mounting bracket the fan can be easily and safely attached to the wall or ceiling in any position. Available in a 115V version and with alternative connection cables.
Features:
⬤ MES AC motor
⬤ Impeller with backward curved blades
⬤ Low power consumption
⬤ Low noise emissions
⬤ Temperature and speed control adjustable
⬤ Aerodynamically optimized shape
⬤ Impact resistant and durable housing
⬤ The connection and the control system in the housing
Additional parameters
| Category: | PRIMA KLIMA Fans |
|---|---|
| Warranty: | 2 years |
| EAN: | 8594171431234 |
| Fan flow: | 500 - 1000 m3/h |
| Flange: | 150mm |
| Input: | 230V 50/60Hz 0.48A |
| Max Airflow: | 760m³/h |
| Measurements: | 338mm x 233mm (w/h) |
| Power: | 110W |
| Tmax: | 42°C |
| Weight: | 3.30Kg (4.22Kg Gross Weight) |
