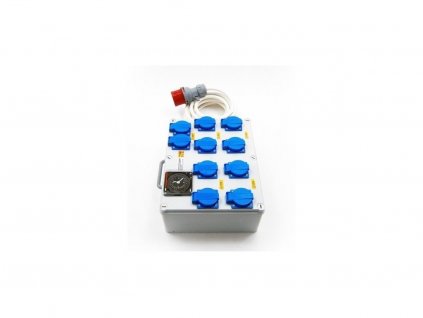

Malapa KL04 analog switchboard 8x 1200W (8+1+1), 400V 16A

The wall-mounted switchgear of the KL series is intended for powering and switching electrical appliances.
It powers and switches inductive and resistive loads. For example, it can be used to switch lighting or greenhouse lighting, pump, WWW engine, advertising, heating, heating and many other regular activities.

Turning on and off the sockets on this unit is controlled by a power contactor and is designed for the switching power of the switchgear. Switch contacts made of precious metal alloys allow to switch inductive loads such as high pressure discharge lamps.
The switching clock controls all switched power sockets of this switchgear, you can plug a maximum load of 1 x 1200W (2x 600W) into each socket. The switchboard also has one night drawer, this socket is switched on when the sockets are switched off, it is suitable, for example, to power the heater. For powering other devices, the switchboard has an integrated, unplugged socket that is under constant voltage.

The switchboard has integrated thermal protection of the contactor (switches off all switched outlets). The switching clock with the built-in backup power supply guarantees operation even when the el. energy for up to 200 hours. Programming the switching clocks is done by pulling out and shutting down the dots around the circumference of the dial. You can also manually switch the switchgear. Switching hours are immune to electromagnetic waves or induction fields.
You can hang the device with a wall-mounted handle. Long-term and flawless operation even under extreme conditions, over design.

Partitioning drawers:

• 4x switching socket controlled by switching clock for lighting (each socket max. 1x 1200W or 2x 600W)
• 1x switching night-time socket controlled by switching clock (max 3000W)
• 1x unplugged socket, under constant voltage

Technical data of the KL02:

• power supply - 400V AC 50Hz
• maximum load - resistive 3x3600W (3x16A)
• 4x switchable socket - total 4x 1200W or 8x 600W inductive load (each socket max. 1x 1200W or 2x 600W)
• 1x switchable socket - night (max. 3000W)
• 1x unplugged socket under permanent voltage
• operation - manual / automatic
• adjustable time - minimum 20 minutes, maximum 24 hours
• switching cycle - 12 hours
• programs - up to 72/24 hours
• accuracy + -1 seconds / 24 hours
• hour backup - up to 200 hours
• protection - thermal
• inlet cord with fork - 5 meters (16A, 5-pin, 400V)
• mounting - wall (handrail)
• total weight - 3780 grams
• size - length 225, width 100, height 180mm
• operating temperature -20 ° to 70 ° C
• working humidity - 0% to 90% RH (non-condensing)
• storage temperature - 0 ° to 45 ° C
• coverage - IP43
• box - ABS
