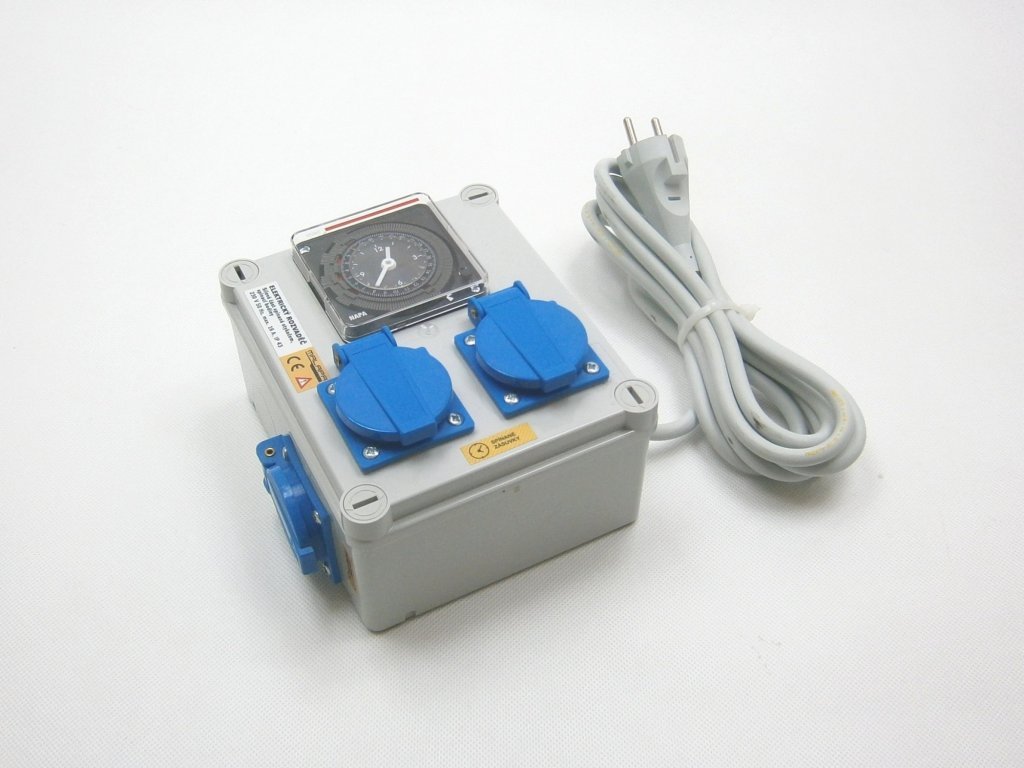

Malapa KL00 - analog switchboard 2x600W (2+1), 230V

Malapa KL00 powers and switches inductive and resistive loads. For example, it can be used to switch lighting or greenhouse lighting, pump, WWW engine, advertising, heating, heating and many other regular activities.
Switching on and off the sockets on this unit is controlled by a high-power relay without noise. The relay is silent when switching. Switch contacts made of precious metal alloys allow to switch inductive loads such as high pressure discharge lamps.

The switching clock controls all switching sockets of this switchgear, you can connect a maximum load of 1x 600W to each outlet. For powering other devices, the switchboard has an integrated, unplugged socket that is under constant voltage. The switchboard has an integrated thermal protection of the relay (switches off all switched sockets). The switching clock with the built-in backup power supply guarantees operation even when the el. energy for up to 200 hours. Programming the switching clocks is done by pulling out and shutting down the dots around the circumference of the dial. You can also manually switch the switchgear. Switching hours are immune to electromagnetic waves or induction fields.

You can hang the device with a wall-mounted handle. Long and flawless operation under extreme conditions.

Partitioning drawers:

• 2x switching socket controlled by switching clock for lighting (each socket max. 1x 600W)
• 1x unplugged socket, under constant voltage

Technical data of the KL00:

• power supply - 230V AC 50Hz
• maximum load - resistive 3600W (16A)
• 2x switchable socket - total 2x 600W inductive load (each socket max. 1x 600W)
• 1x unplugged socket under permanent voltage
• operation - manual / automatic
• adjustable time - minimum 20 minutes, maximum 24 hours
• switching cycle - 12 hours
• programs - up to 72/24 hours
• accuracy + -1 seconds / 24 hours
• hour backup - up to 200 hours
• protection - thermal
• supply cord with fork - 3 meters
• mounting - wall (handrail)
• total weight - 1250 grams
• size - length 165, width 140, height 95mm
• operating temperature -20 ° to 70 ° C
• working humidity - 0% to 90% RH (non-condensing)
• storage temperature - 0 ° to 45 ° C
• coverage - IP43
• box - ABS
