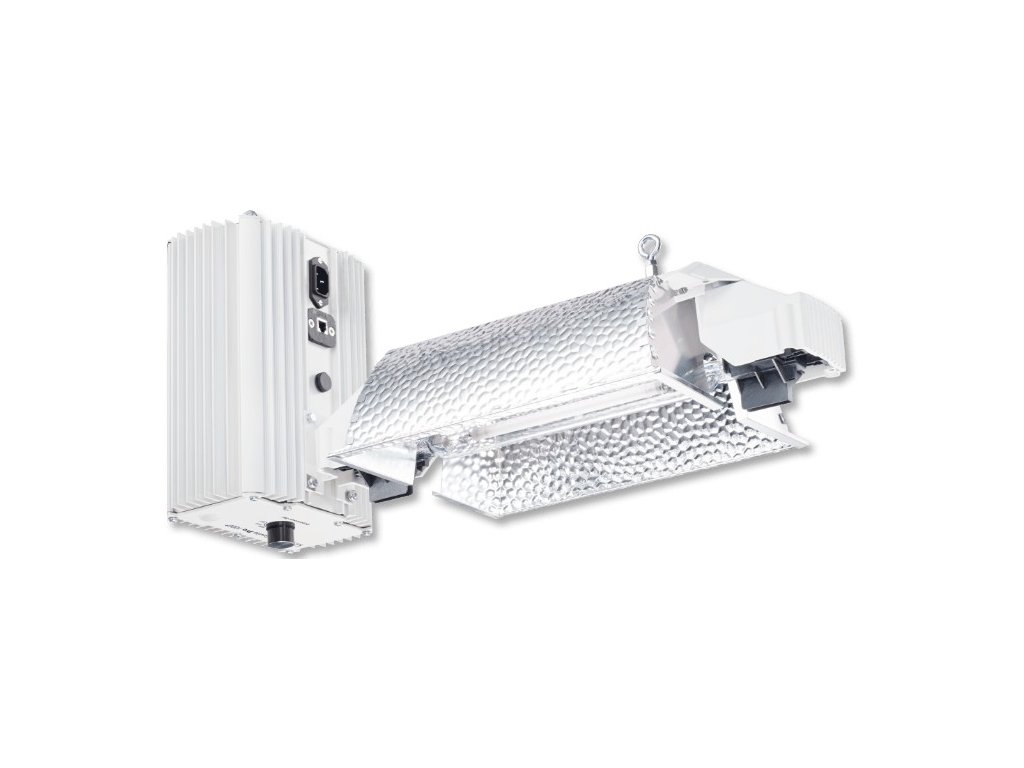

Gavita Pro 1000e DE - version with regulation

Complete Gavita Pro luminaires

Gavita Pro is a range of professional growing equipment that has proven its reliability through successful use in greenhouses and indoor growing spaces around the world.

e-series of complete Gavita luminaires

The Gavita Pro e-series is a range of professional complete luminaires of the latest generation that can be controlled by Gavita Master control units.

Gavita Pro 1000e DE EU

The new Gavita Pro e-series is a series of improved models controllable by Gavita Master control units. Now you have complete control over your growing system at your fingertips.

Gavita Pro HPS luminaires are the standard among growing lighting. They are powered by a standard mains voltage of 230 V, but this voltage is increased by the electronic ballast for powering a professional 400 V filament lamp with E40 thread, which excels over other HPS luminaires on the market in spectrum quality, efficiency and durability.

• Completely sealed with GORE-TEX ® ventilation plugs, no moving parts, completely quiet and cool to the touch.

• Designed for high-frequency 400V electronic growing lamps with 10-25% higher light output than traditional high-pressure sodium lamps.

• High service life:> 95% luminosity after one year of use, when lamp replacement is recommended.

• Replaceable Gavita HR96 reflector with 96% reflectivity for maximum efficiency of the entire system (an alternative is also an HRW wide reflector).

• Adjustable output: Dim or amplify your lights for different growing conditions and phases.

• Gradual switching on and off for maximum lamp life and reliability.

• Equipped with high frequency (> 100 kHz) Gavita electronics.

• No electromagnetic interference problems thanks to the integrated design.

Features and benefits

• Professional complete luminaire.

• Equipped with a new Gavita Pro Plus 1000W 400V DE EL high pressure sodium lamp (HPS), 2100 umol s-1

• Highest light output and efficiency on the market (A ++)

• Controllable with Gavita Master control unit

• Easy to install

• Total regulation range 50-115%.

• Illuminates more than 2 m2 with 1000 umol m-2 s-1.

• CE certified.

Specifications

• Input voltage: 230V (± 10%)

• Input current 1: 4.6A (at 100% power)

• Power consumption 1: 1055W (at 100% power)

• Input current 2: 5.3A (at 110% power)

• Power consumption 2: 1210W (at 110% power)

• Power factor: 0.98

• THD (total harmonic distortion): <10%

• Input frequency: 50-60Hz

• Input connector: IEC C14

• Available settings: 600/750/825/1000 / 1150W / EXT

• Certified: CE

• External dimming: Gavita Master control unit analog interface (<11.5V)

• External dimming connector: Built-in RJ14 connector (6P4C)

• EAN code: 8718403053326 (EU) | 8718403053340 (UK) 8718403053357 (CH)

• Package contents: User manual, mains power cable, 2 RJ14 and RJ14 splitter cables, Gavita Pro luminaire, three-year warranty.
