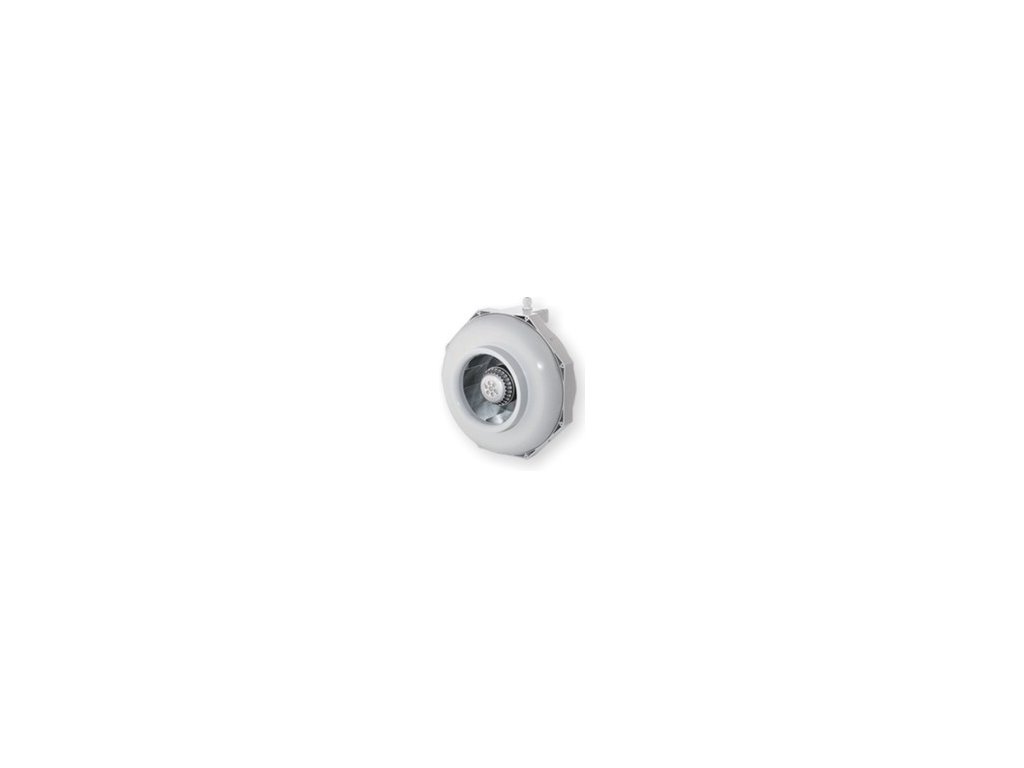

Can-Fan RK 100 LS (270 m3/h, ?100 mm, 4-speed)
Duct fan with backward curved blades, voltage controlled, integrated automatic thermal contact, fan unit balanced in 2 planes in accordance with G 2.5 DIN ISO 1940, plastic casing, output 270 m3 / h, ∅ connection 100 mm, 4 speed control stages.
Ruck RKLS is a radial fan of the UFO type, which is suitable for ventilation of growing spaces, family houses, sanitary facilities, offices, restaurants or smaller industrial spaces such as warehouses, etc. The fan has an asynchronous motor with an external rotor. The motor is single-phase with thermal protection against overheating. The stator with corrosion protection, which is equipped with metal backward-curved blades, is housed in a plastic housing (PA6, RAL 7035). It has a built-in thermal contact and terminal block. Ruck RKLS can be installed in any position thanks to ball bearings, which ensure a long life of the fan. The piping connection should be flexible to prevent the transmission of vibrations to the air ducts.
The fan is equipped with 4-stage speed control.
The maximum operating air temperature is 70 ° C.
Additional parameters
⬤ Category: RUCK RK
⬤ Flange (mm): 100mm
⬤ Flow from: From 250 m3 / h
⬤ Flow up to: Up to 500 m3 / h, Up to 1000 m3 / h, Up to 1500 m3 / h
⬤ Speed control: 4 speeds
⬤ Technology: Radial
⬤ Power / air flow : 270 m3 / h
⬤ Power consumption: 55 W
⬤ Current : 0.2 A
⬤ Voltage: 230 V
