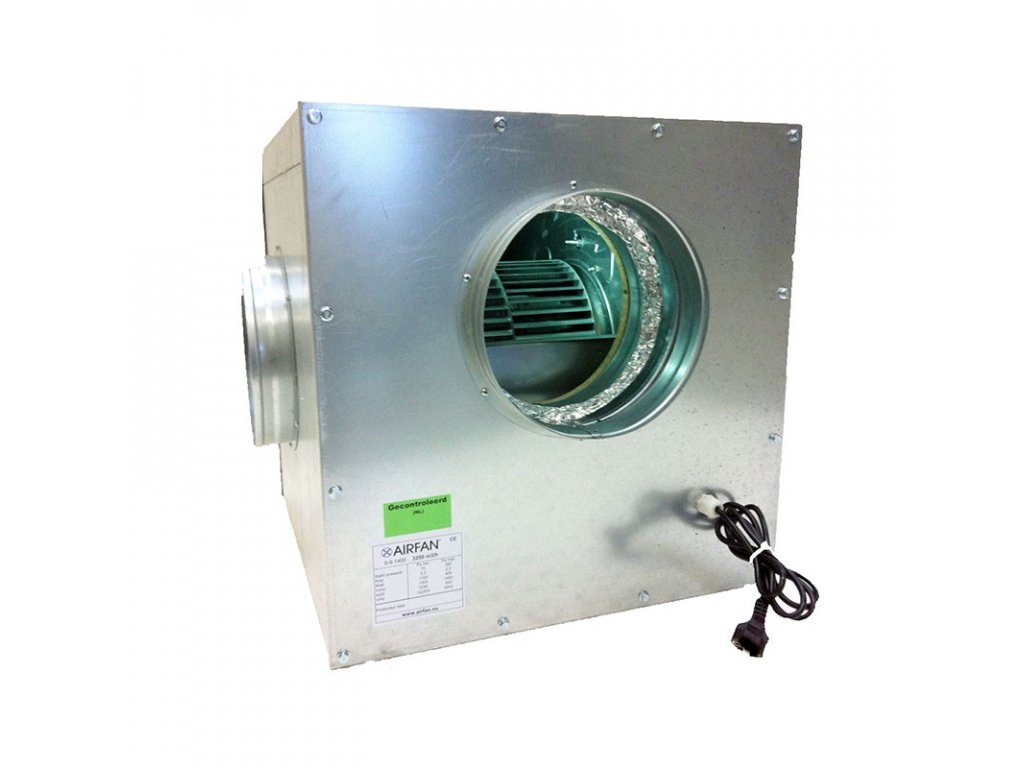

Airfan SOFT-Box Metal 4250 m3/h - maximum soundproof fan including flanges and hooks for mounting

Maximum soundproofed and boxed fan Airfan SOFT-Box Metal 4250 m3 / h, which is mounted in the box on rubber hinges to reduce recesses and noise.

The item has been sold out…
Availability OUT OF STOCK
Code: MSOFT4250
€476,77
Airfan SOFT-Box Metal 4250 m3/h - maximum soundproof fan including flanges and hooks for mounting

Soundproof boxed fan made of sheet metal. It is delivered assembled, including flanges and hooks for mounting. It draws warm and humid air from the growing areas.

The fan must be dimensioned with an air flow 30 to 50 times larger than the volume of your growing room. You can then effectively control the fan speed with other devices depending on the temperature and humidity. You will not only use the full potential of Airfan but also further reduce possible noise to a minimum.

The Soft-BOX Metal 4250 m3 / h fan is installed in sheet metal with insulating foam, which covers the interior and further reduces the noise produced by the fan.
The fan motor is suspended in the box on rubber hinges, thanks to which there is a further significant reduction in equipment noise.

Supplied with plug installed, 315 mm inlet hole and two 250 mm outlet holes, with flanges and hooks for mounting.



⬤   Flow (m3 / h): 4250
⬤   Max. current (A): 6
⬤   Inlet diameter (mm): 1 x 315
⬤   Outlet diameter (mm): 2 x 250
⬤   Dimensions (cm): 65 x 65 x 65
⬤   Speed range (m3 / h): 700 - 3600
⬤   Consumption (W): 598 - 1334
⬤   Noise level (dB): 37.2
⬤   Supply voltage: 1-phase 220 / 240V - 50Hz
⬤   Temperature range: -30 ° C to + 70 ° C
⬤   Protection class: IP44

Additional parameters

Category: AirFan (silent fans with box)
Weight: 31.5 kg
